本周给大家带来的推荐产品是:电脑液压泵联调设备。
电脑液压泵联调设备可实现以下测试项目:
Line 序号 | Testing 试验项目 | How to test 试验方法 |
1 | Swept test 排量验证试验 | Flow the JB/T 7041.2-2006 Table8-1 to do test. 参考 JB/T 7041.2-2006 排量验证试验。 |
2 | Overload test 超载性能试验 | Running at least 30min in the max. swept, rotation speed, max. Pressure or 125% rated pressure. 最大排量、试验转速下,最高压力或 125% 额定压力的工况下,连续运转不少于 30min。 |
3 | Full load test 满载试验 | Continuous running on rated working conditions. 在额定工况下,被试泵做连续运转,运转时可设定。 |
4 | Volumetric efficiency test 效率检查 | After the test 1,2 and 3,measuring the volume efficiency on rated working condition. 完成上述项目试验后,测量额定工况下的容积效率. |
5 | Leakage Test 密封性检验 | Clean the tested pump, check whether there is oil leakage at the dynamic and static seals. 将被试泵擦干净,观察动静密封处有无外渗油。 |
6 | Operation Test 运转试验 | Open all output pressure regulator,close the safety valve.Pump set rated speed,pressure rise up to the rating and then discharge.Running Time ≥30min. 出口压力调节阀全部打开,安全阀调到关闭状态。泵额定转速,压力从零升压至额定排出压力。运转时间 ≥30min |
7 | Low Speed Test 低速试验 | Continuously operate over 10 min to measure the flow rate, pressure data and volumetric efficiency at stable output rated pressure. 在输出稳定的额定压力下,连续运转 10min 以上测量流量、压力数据、计算容积效率。 |
8 | High Speed Test 超速试验 | Under maximum output volume,maximum rotation rate and non-loading pressure keep running over 15 min. 在最大排量下,转速为使用最大转速,在空载压力连续运转 15min 以上。 |
设备技术参数:
1)试验工作介质:46# 液压油;
2)油箱容量:常温 500L;
3)工作介质温度:常温;
4)环境温度:室温;
5)试验台驱动电机功率:45KW;
6)工作压力:0.5~25MPa,电比例调节;
7)转速测试范围:500~2000rpm;
8)试验工位:1 个;
9)压力控制精度:±1%;
10)压力测量精度:压力传感器精度 ±0.5%;
11)流量计测量范围:6.4~130L/min,精度 ±0.5%FS;
12)液压油冷却采用风冷式冷油机,最大冷却功率与发热功率适配;
13)试验台采用电脑远程控制,可自动采集压力、流量、温度等测试参数。

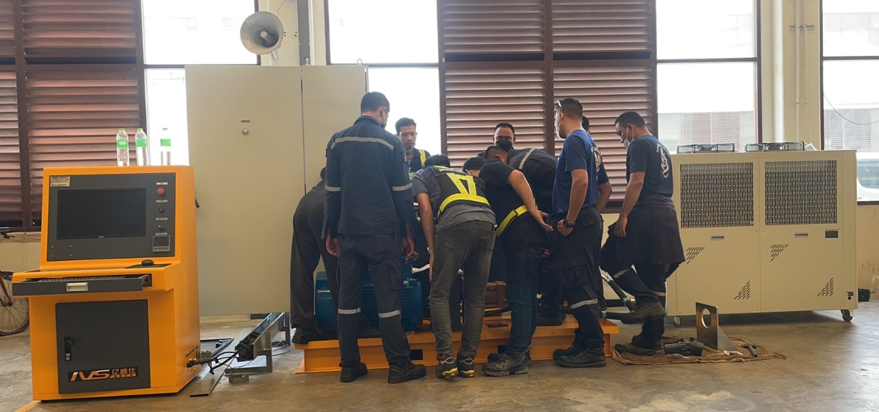

设备参考图片:
(产品应用参考案例:泰国海军基地)
